用 Thermo Scientific Dionex IonPac AS11-HC 毛細管分析和保護柱分解復雜基質中數量眾多的無機陰離子和有機酸陰離子。
復雜的樣品基質（例如化工廢水洗脫液和發酵肉湯溶液）含有各種無機陰離子和有機酸。 利用高容量的 Dionex IonPac AS11-HC
柱，您可以注入更高濃度的樣品，而不會出現柱過載或峰擴寬。
Dionex
IonPac AS11-HC 柱**為利用氫氧化梯度在單次運行中分解分析物而設計。
這款高容量的柱為改善一價羧酸（包括奎尼酸鹽、乳酸鹽、乙酸鹽、丙酸鹽、甲酸鹽和丁酸鹽）的分離而設計。
高容量，更高分辨率
需要更長的保留時間，但是分辨率更高
促進良好表征的樣品中有機酸和陰離子的快速分析
特別適合分解復雜樣品基質或未表征樣品中的有機酸和陰離子
建議用于一價和二價有機酸
更低的洗脫液要求，降低運行成本
全新的 Dionex IonPac AS11-HC Capillary 柱使用與同等標準孔和微孔版本相同的填料（提供與 4 mm 和 2 mm 柱相同的性能），但僅使用 1% 的洗脫液流速，幫助降低運行成本。
對于高離子強度樣品中的有機酸，使用 Thermo Scientific? Dionex? IonPac? ICE-AS1 或 ICE-AS6 柱。
用途和特點：
IonPac AS11-HC 陰離子交換分離柱用 NaOH或KOH做 淋 洗 液 ，用 于 無 機 陰 離 子 和有機酸陰離子的快速分離，包括：無機陰離子；一價，二價，三價脂肪酸；Kreb’s循環酸；高電荷陰離子，如多聚磷酸鹽，多聚硫酸鹽，多聚碳酸鹽；疏水性離子如I-，SCN-，S2O32-和ClO4-；核苷酸。有機溶劑可匹配性方便陰離子交換選擇性的控制，以及復雜基質分析后的清洗。可用IonPac AG11作濃縮柱。作梯度淋洗時，*好在泵和進樣閥之間連接一支陰離子捕獲柱以除去來自淋洗液中污染的陰離子。*好用EG40淋洗液發生器。IonPac AS11和高容量柱AS11-HC均有4mm標準孔柱和2-mm微孔柱。
訂貨信息：
IonPac AS11-HC 陰離子交換分離柱
| Analytical Columns | |
| IonPac AS11-HC Analytical Column (4 x 250 mm) | 052960 |
| IonPac AS11-HC Analytical Column (2 x 250 mm) | 052961 |
| IonPac AS11-HC Capillary Column (0.4 x 250 mm) | 078429 |
| Guard Columns | |
| IonPac AG11-HC Guard Column (4 x 50 mm) | 052962 |
| IonPac AG11-HC Guard Column (2 x 50 mm) | 052963 |
| IonPac AG11-HC Capillary Guard Column (0.4 x 50 mm) | 078430 |
Complex sample matrices such as chemical wastewater effluents and fermentation broth solutions contain a variety of inorganic anions and organic acids. The Thermo Scientific* Dionex* IonPac* AS11-HC column was specifically designed to resolve a large number of inorganic anions and organic acid anions in a single run using a hydroxide gradient. The new Dionex IonPac AS11-HC Capillary Column is packed with the same material as the equivalent standard bore and microbore versions (providing the same performance as a 4 mm and 2 mm column) but requires only 1/100th the eluent flow rate. The capillary format provides the advantage of significantly reduced eluent consumption, which helps reduce operating costs
Use for organic acids and anions in complex sample matrices or uncharacterized samples.
Recommended for monovalent and divalent organic acids.
Use the Dionex Ionpac AS11 for fast analysis of organic acids and anions in well-characterized samples.
Use the Dionex IonPac ICE-AS1 or ICE-AS6 columns for organic acids in high-ionic-strength samples.
High capacity translates into longer retention times, but with higher resolution.
The high-capacity Dionex IonPac AS11-HC column allows the injection of more concentrated samples without column overloading or peak broadening, and provides improved separation over the Dionex IonPac AS11 column for monovalent carboxylic acids, including quinate, lactate, acetate, propionate, formate, and butyrate.
| Dionex IonPac* AS11-HC Anion-Exchange Column Specifications | |
|---|---|
| Dimensions | Dionex IonPac AS11-HC Analytical Column: 2 × 250 mm and 4 × 250 mm Dionex IonPac AG11-HC Guard Column: 2 × 50 mm and 4 × 50 mm Dionex IonPac AS11-HC Capillary Column 0.4 × 250 mm Dionex IonPac AS11-HC Capillary Guard Column 0.4 × 50 mm |
| Maximum operating pressure | 4000 psi (27 MPa) |
| Mobil phase compatibility | pH 0–14; 0–100% HPLC solvents |
| Substrate characteristics | Bead Diameter: 9.0 μm Pore Size: 2000 ? Cross-Linking (%DVB): 55% |
| Latex characteristics | Functional Group: Alkanol quaternary ammonium ion Latex Cross-Linking: 6% Latex Diameter: 70 nm Hydrophobicity: Medium low |
| Capacity | 72.5 μeq (2 × 250 mm analytical column) 290 μeq (4 × 250 mm analytical column) 2.9 μeq (0.4 × 250 mm capillary column) |
| Column construction | PEEK? with 10-32 threaded ferrule-style end fittings. All components are nonmetallic. |

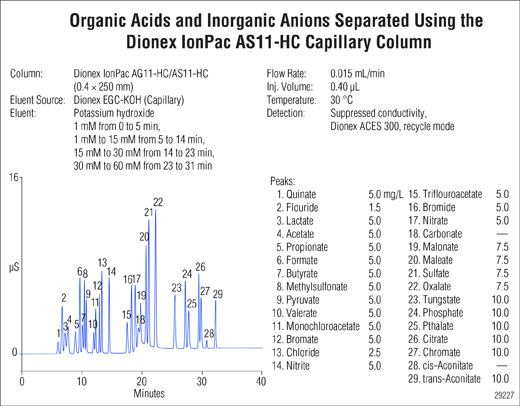

Organic acids and inorganic anions separated using the Thermo Scientific* Dionex* IonPac* AS11-HC Capillary column.

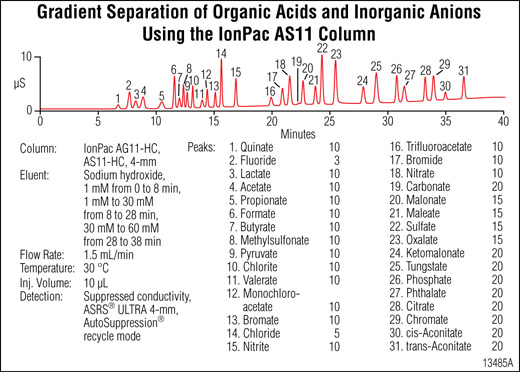

Determination of organic acids and inorganic anions using the Dionex IonPac AS11-HC column.

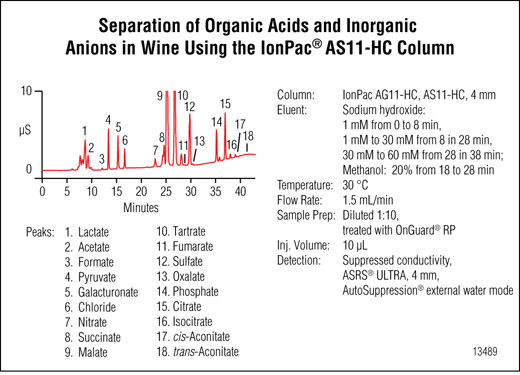

Separation of organic acids and inorganic anions in wine using the Dionex IonPac AS11-HC column.

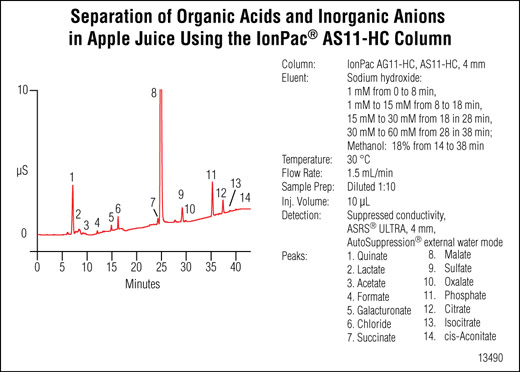

Separation of organic acids and inorganic anions in apple juice using the Dionex IonPac AS11-HC column.

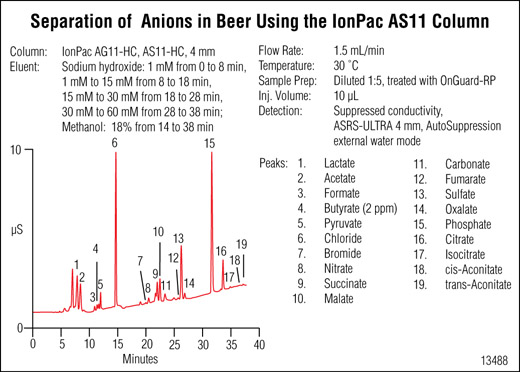

Dionex IonPac AS11-HC column used for the analysis of beer spiked with 2 mg/L (ppm) butyrate.

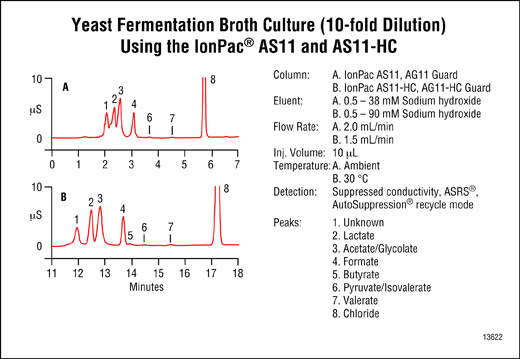

Yeast fermentation broth culture (10-fold Dilution) using the Dionex IonPac AS11 and AS11-HC columns.
