100％二甲基聚硅氧烷，鍵合和交聯相。
這些色譜柱具有與TRB-1相同的選擇性，可滿足色譜柱色譜規格，使其與GC / MS分析痕量組分相容。 因此，標準色譜柱為30m x 0.25mm x0.25μm，在325°C時大允許放置4 pA。
對活性成分具有極高的化學惰性，并具有優異的熱穩定性。
提高了信噪比，可以使MS，ECD，NPD，SCD等檢測器獲得更高的靈敏度，并在痕量水平上提供更高的定量分析精度。
較少的色譜柱泄漏意味著更少的檢測器污染和更高的調節色譜柱速度
類似固定相：
Agilent: HP-1MS, DB-1MS
Restek: Rtx-1ms, Rxi-1ms
Varian: CP-SIL 5 CB MS, VF-1ms
Alltech: AT-1MS
訂貨信息：

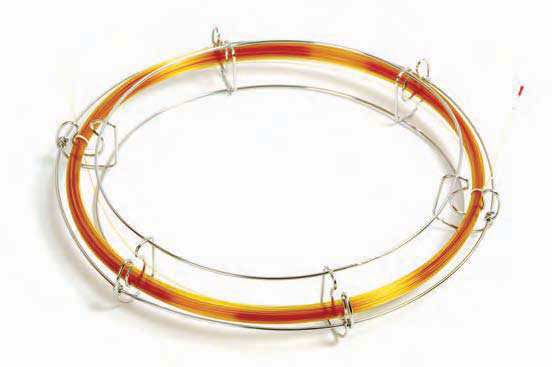

TRB-1ms 氣相色譜柱
| 內徑(mm) | 長度 (m) | 膜厚 (μm) | Temp limits (°C) | Part. N°. (P/N) |
| 0.1 | 10 | 0.1 | -60 to 325/350 | TR-510141 |
| 10 | 0.4 | -60 to 325/350 | TR-510441 | |
| 20 | 0.1 | -60 to 325/350 | TR-510181 | |
| 20 | 0.4 | -60 to 325/350 | TR-510481 | |
| 0.18 | 20 | 0.18 | -60 to 325/350 | TR-510984 |
| 40 | 0.18 | -60 to 325/350 | TR-5109C4 | |
| 0.2 | 12 | 0.33 | -60 to 325/350 | TR-5133B9 |
| 15 | 0.33 | -60 to 325/350 | TR-513319 | |
| 25 | 0.33 | -60 to 325/350 | TR-513329 | |
| 30 | 0.33 | -60 to 325/350 | TR-513339 | |
| 50 | 0.33 | -60 to 325/350 | TR-513359 | |
| 60 | 0.33 | -60 to 325/350 | TR-513369 | |
| 0.25 | 15 | 0.1 | -60 to 325/350 | TR-510112 |
| 15 | 0.25 | -60 to 325/350 | TR-510212 | |
| 15 | 1.0 | -60 to 325/350 | TR-511012 | |
| 30 | 0.1 | -60 to 325/350 | TR-510132 | |
| 30 | 0.25 | -60 to 325/350 | TR-510232 | |
| 30 | 1.0 | -60 to 325/350 | TR-511032 | |
| 60 | 0.1 | -60 to 325/350 | TR-510162 | |
| 60 | 0.25 | -60 to 325/350 | TR-510262 | |
| 60 | 1.0 | -60 to 325/350 | TR-511062 | |
| 0.32 | 15 | 0.1 | -60 to 325/350 | TR-510113 |
| 15 | 0.25 | -60 to 325/350 | TR-510213 | |
| 15 | 0.5 | -60 to 325/350 | TR-510513 | |
| 15 | 1.0 | -60 to 325/350 | TR-511013 | |
| 60 | 1.0 | -60 to 325/350 | TR-511062 | |
| 30 | 0.1 | -60 to 325/350 | TR-510133 | |
| 30 | 0.25 | -60 to 325/350 | TR-510233 | |
| 30 | 0.5 | -60 to 325/350 | TR-510533 | |
| 30 | 1.0 | -60 to 325/350 | TR-511033 | |
| 60 | 0.1 | -60 to 325/350 | TR-510163 | |
| 60 | 0.25 | -60 to 325/350 | TR-510263 | |
| 60 | 0.5 | -60 to 325/350 | TR-510563 | |
| 60 | 1.0 | -60 to 325/350 | TR-511063 | |
| 0.53 | 15 | 0.5 | -60 to 320/340 | TR-510515 |
| 15 | 1.0 | -60 to 320/340 | TR-511015 | |
| 15 | 1.5 | -60 to 310/340 | TR-511515 | |
| 30 | 0.5 | -60 to 320/340 | TR-510535 | |
| 30 | 1.0 | -60 to 320/340 | TR-511035 | |
| 30 | 1.5 | -60 to 310/330 | TR-511535 |

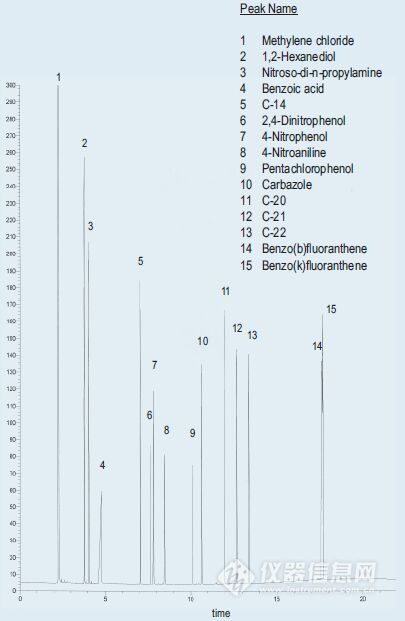

TRB-1ms
Column: TRB-1ms, P/N TR-510262
Dimensions: 60m x 0.25mm x 0.25μm
Injection: 1μL Test MX5 (10 to 20 ng/comp. on column), split 1:100, 280oC
Carrier gas: H2, constant pressure 25 psi (172 KPa).
Oven temperature: 100oC @ 6oC/min to 325oC(5 min)
Detector: FID, 340oC
Peak Name
1 Methylene chloride
2 1,2-Hexanediol
3 Nitroso-di-n-propylamine
4 Benzoic acid
5 C-14
6 2,4-Dinitrophenol
7 4-Nitrophenol
8 4-Nitroaniline
9 Pentachlorophenol
10 Carbazole
11 C-20
12 C-21
13 C-22
14 Benzo(b)fl uoranthene
15 Benzo(k)fl uoranthene
